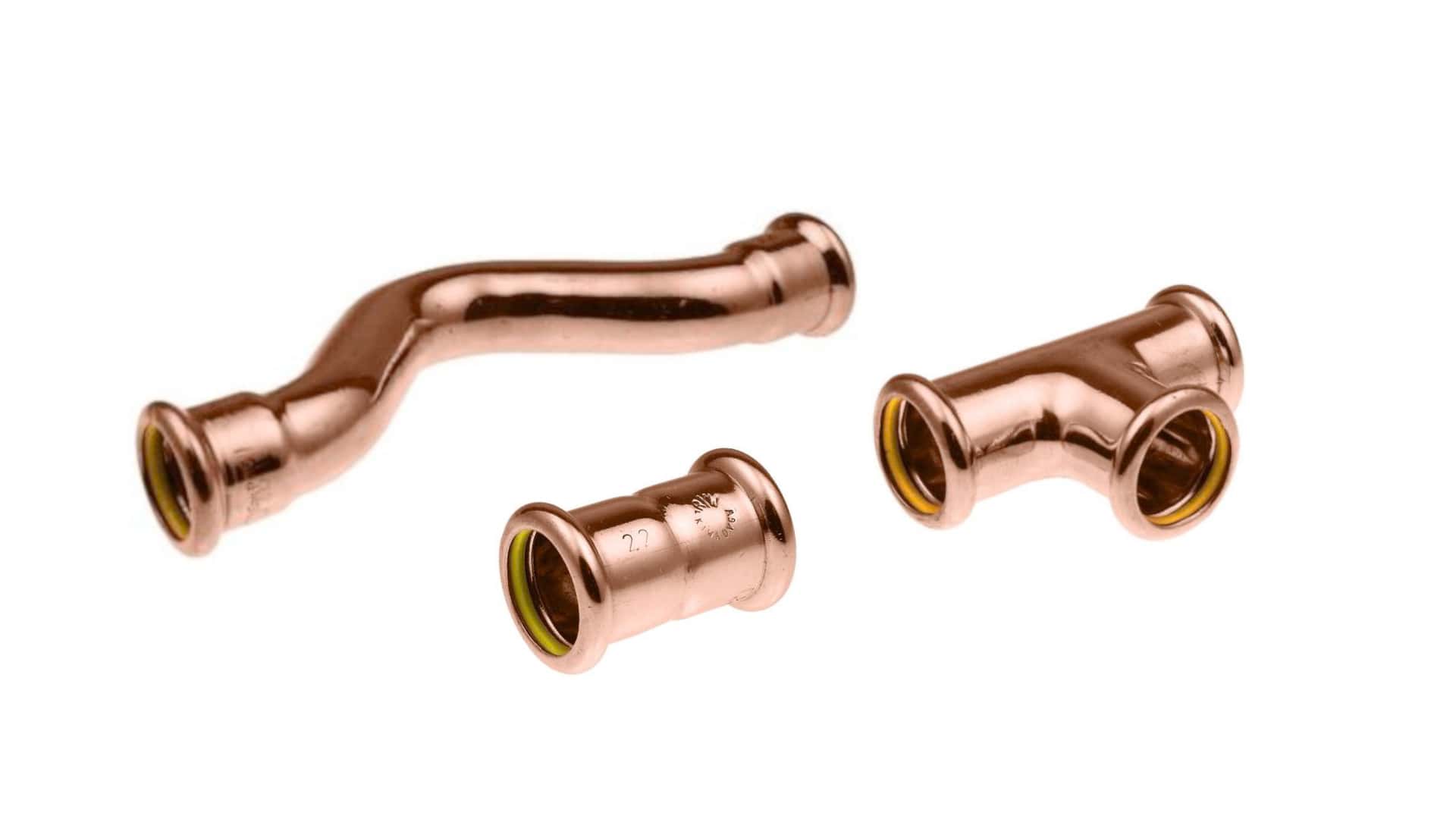

System KAN‑therm Copper Gas includes only fittings. Therefore, the pipes used with the system must meet specific requirements and have suitable properties.
Copper pipes used with KAN-therm Copper Gas must be compliant with EN 1057 R220/R250/R290.
Copper pipes approved for using with the System KAN-therm Copper Gas |
||||||||||
Ø [mm] |
Wall thickness [mm] |
|||||||||
0,6 |
0,7 |
0,8 |
0,9 |
1,0 |
1,1 |
1,2 |
1,5 |
2,0 |
2,5 |
|
15 |
R250 |
R250 R290 |
||||||||
18 |
R250 R290 |
|||||||||
22 |
R250 |
R250 R290 |
||||||||
28 |
R250 |
R290 |
R250 |
R290 |
||||||
35 |
R290 |
R250 R290 |
R290 |
|||||||
42 |
R290 |
R250 R290 |
R290 |
|||||||
54 |
R290 |
R250 R290 |
R290 |
The values in the table refer to the tensile strength (220, 250 and 290N/mm²). There is a differentiation between soft, medium-hard and hard pipes - R220, R250 and R290 respectively. The higher the value, the harder the pipe material.
